Metal in Mandible

Prashanth Panta, Uday Shankar Yaga
Pan Afr Med J. 2016; 23:192. doi:10.11604/pamj.2016.23.192.9425. Published 15 Apr 2016

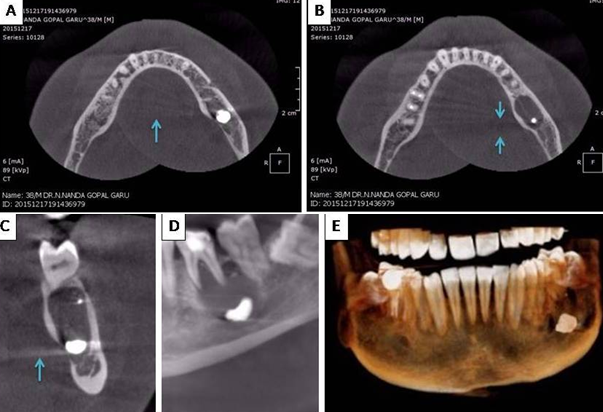

A 38 year old male doctor presented to a radiology center for cone beam computed tomography (CBCT) and the working maxillofacial radiologist spotted a very peculiar finding - There was a large piece of metal in the mandible (size 0.5 cm X 0.5 cm). Unfortunately this patient couldn’t be followed up and the reason for referral is not known. Here in we would like to provide a commentary on CBCT artifacts seen in this case along with an explanation for his case. Based on our observation the object in the mandible is certainly a metallic filling (See figure). This finding is based on the artifacts (acquisition artifacts) that were produced around the suspected material. Two types of artifacts were seen: 1. Scatter and 2.Beam hardening artifacts. Scatter occurs due to the diffraction of original beam after interaction with material. Scatter causes streak artefacts in the reconstruction (Blue arrows in panel A and C). Beam hardening artifacts were also found; they are more common. The lower energy rays suffer significant absorption when passing through the object. Higher the density and atomic number (metals) greater is the absorption. In the reconstruction image they are seen as darks streaks (Between blue arrows in panel B). Materials that often cause beam hardening include metallic restorations and titanium implants? Yes, even light metals such as titanium cause massive beam hardening and amalgam which is the material suspected in this case causes even greater hardening of beam. We strongly think that the metal must be amalgam. Some metal must have got displaced during the stage of condensation of filling in the tooth (most likely 36) just above the large radiolucent lesion. This is the most probable explanation.
