Chest trauma revealed an ostium secundum atrial septal defect in adulthood

Zine el Abidine Benali, Hatim Abdedaim
Pan Afr Med J. 2014; 17:29. doi:10.11604/pamj.2014.17.29.3295. Published 17 Jan 2014

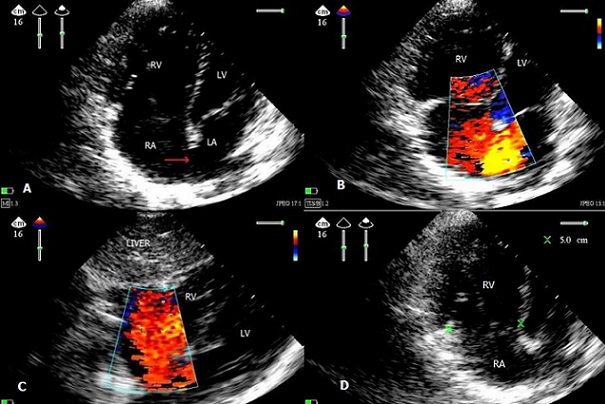

Atrial septal defect (ASD) is characterized by a defect in the interatrial septum allowing pulmonary venous return from the left atrium to pass directly to the right atrium. ASD account for 10% of all congenital heart disease, and as much as 30 % of congenital heart disease presenting in adulthood. There are four types of ASD that can be recognized as the seat of the port: ostium secundum, the most common, they are located in the area of the oval fossa, and are usually well focused, to differentiate from a patent foramen ovale as in our patient , isolated secundum atrial septal defects account for approximately 7% of congenital cardiac defects ; sinus venosus, high location, near to the anastomosis of the pulmonary veins ; ostium primum , low, can be integrated into a more complete atrioventricular canal ; coronary sinus, a very rare form, this type is a fenestration or a total absence of the roof of the coronary sinus, into the left atrium. In general, elective closure is advised for all ASD with evidence of right ventricular overload or with a clinically significant shunt (pulmonary flow [Qp] to systemic flow [Qs] ratio >1.5). Closure of an ASD is not recommended in patients with a clinically insignificant shunt (Qp-Qs ratio 0.7 or below) and in those who have severe pulmonary arterial hypertension or irreversible pulmonary vascular occlusive disease who have a reversed shunt : right to left with hypoxemia. We report the case of a men aged 35 years, admitted to the ICU for a left pneumo-hemothorax with rib fracture resulting from an accident of the highway, drained emergency. Auscultation of the heart sounds: a systolic ejection murmur, respiratory variations in the splitting of the second heart sound; in the ECG: presence of incomplete right bundle branch block with atrial flutter. The echocardiography at the bedside with multiple effects showed dilatation of the right ventricle, and confirming the atrial septal defect type ostium secundum with left-right shunt noting that the subcostal window is a better impact on the diagnostic to ask for two reasons: ultrasound are perpendicular, Doppler is strictly aligned . Hypertension of pulmonary artery measured at 45 mmHg. The patient is referred to the cardiovascular consultation after its release for therapeutic cardiology discussion.

Corresponding author:
Zine el abidine Benali, Department of Anesthesiology, CHP Eddarak, Berkane, Morocco

©Zine el Abidine Benali et al. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
